HAPAX ATLAS

Adjustable deck support

The Hapax ATLAS adjustable deck supports are the ideal and indispensable basis of an excellent wooden deck. They are quick and easy to use because the joists of the deck rest on the adjustable deck supports without having to screw them in. The Hapax ATLAS deck supports are adjustable from 3 cm to 100 cm, making it easy to adjust the height and spirit level of your wooden deck.



Made of thermoplastic elastomer, the Hapax ATLAS adjustable deck supports are UV-resistant, resistant to temperature fluctuations, reusable and 100% recyclable. The Hapax ATLAS adjustable deck supports have a supporting power up to 800 kg/deck support.



The Hapax ATLAS adjustable deck supports create space under the deck and ensure smooth water drainage. Because of that, standing water and rotting of the wood is not possible. You can also easily repair the bottom layer of the terrace if there should be a defect. The use of the Hapax ATLAS adjustable deck supports extends the lifespan of your wooden deck.



The Hapax ATLAS adjustable deck supports make it possible to build any deck quickly and easily, even yours!

ADVANTAGES

1

Large bearing surface and high carrying capacity: leads to great stability and can handle up to 800 kg / piece.

2

Universal: due to the diversity in top plates, they can be used for tile terraces in concrete, ceramics and natural stone as well as for wooden terraces.

3

Extends the lifespan of the terrace: because of the space they create under the terrace they ensure a smooth drainage, so that there is no standing water and the risk of rotting the wood is excluded. As well, the joints between the floor elements are left open so that water can seep through and there is no risk of cracking.

4

Fast and simple: significantly reduces the installation time when controlling the height of the terrace.

5

Adjustable: adapts to any height. They are infinitely adjustable in height from 3 to 100 cm in an instant and easily adjust the height and step of the terrace.

6

Fully demountable, completely replaceable and reusable: when moving or opening the terrace you can easily move the pedestals.

CHOICE OF 3 DECKING SUPPORTS

WOODEN DECK:

HAP042ATLAS03051

HAP042ATLAS05091

Support plate exclusive

30-50 mm

50-90 mm

TILE DECK:

HAP042ATLAS0305T1

30-50 mm

SUPPORT PLATE FOR WOOD

HAP042ATLASPLW1

HAP042ATLAS05091

Support plate exclusive

50-90 mm

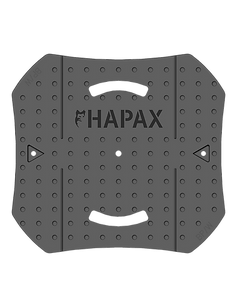

SUPPORT PLATE FOR TILES

HAP042ATLASPLT1

INSTALLATION

WOODEN DECK:

The number of pedestals per m² depends on the size and the nature of the beams and boards of the deck.

Advised number of carriers per m² for wooden decks: 5 pedestals/m².

It is advised to leave at least 40 cm and a maximum distance of 60 cm between the pedestals.

TILE DECK:

Recommended for tiles with a minimum size of 40x40Cm, in accordance with the instructions of the tile manufacturer.

For tile-formats larger than 60x60cm, an extra pedestal in the center of the tile can be necessary.

Always contact the tile manufacturer !

EXTENSION | 35 MM

HAP042ATLASEXT1

An extension can easily be added to the Hapax ATLAS adjustable deck support for even more flexibility and extra height. The Hapax ATLAS deck supports are suitable for every deck!
